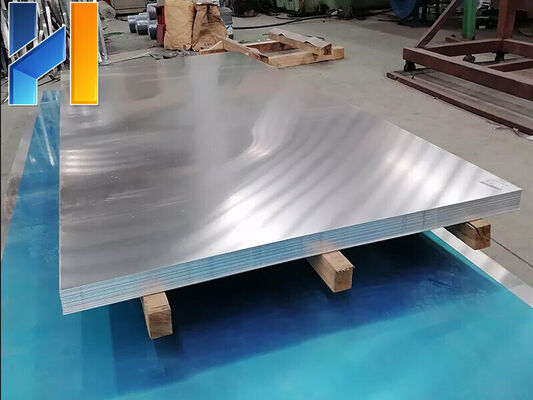

Premium 0.2-200mm Thickness Corrosion Resistant T66 Temper Aluminum Plate and Sheet
Product Details
| Thickness Range: | 0.2-200mm | Width Range: | 100-2000mm |
|---|---|---|---|
| Length Options: | 2000mm,2440mm,6000mm | Alloy Type: | EN AW-6082 |
| Silicon Content: | 0.20 – 0.60% | Magnesium Content: | 0.60 -1.20% |
| Manganese Content: | 0.40 – 1.00% | Copper Content: | 0.15 – 0.40% |
| Iron Content: | 0.10 – 0.30% | Chromium Content: | 0.25% Max |
| Zinc Content: | 0.15% Max | Titanium Content: | 0.20% Max |
| Temper: | T66 | UTS Minimum: | 245 Mpa |
| Yield Strength: | 200 Mpa | ||
| Highlight |
0.2-200mm Thickness Aluminum Plate,Corrosion Resistant Aluminum Sheet,T66 Temper Aluminium Plate |
||
Product Description
- Superior strength-to-weight ratio
- Excellent corrosion resistance
- High thermal and electrical conductivity
- Easy to fabricate and form
- Available in various finishes
| Item | Standard | Material Alloys | Size Range |
|---|---|---|---|
| Aluminum Sheet | GB/T3190-2008, GB/T3880-2006, ASTM B209, JIS H4000-2006, etc. | 1050, 1060, 2A14, 3003, 3103, 4032, 5454, 5754, 5056, 5082, 5086, 6061, 6060, 6082, 7075, 7475 | Thickness: 0.2-200mm, Width: 100-2000mm, Length: 2000mm, 2440mm, 6000mm, or as required |
| Surface Finish | Mill Test Certification supplied with shipment, Third Part Inspection is acceptable | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. | N/A |
| Trade Terms | Ex-Work, FOB, CNF, CFR, etc. | TT, L/C, Western Union, etc. | Prompt delivery for in-stock items; based on order quantity for others |
| Container Type | Dimensions (L x W x H) | Capacity (CBM) |
|---|---|---|
| 20ft GP | 5898mm x 2352mm x 2393mm | 24-26 CBM |
| 40ft GP | 12032mm x 2352mm x 2393mm | 54 CBM |
| 40ft HC | 12032mm x 2352mm x 2698mm | 68 CBM |
| Alloy | %Si | %Mg | %Fe | %Al |
|---|---|---|---|---|
| EN AW-1050 A | 0.25 Max | 0.05 Max | 0.40 Max | 99.5 Min |
| EN AW-1070 A | 0.20 Max | 0.03 Max | 0.25 Max | 99.7 Min |
| EN AW-1100 | 0.95 Max (Si+Fe) | - | - | 99.0 Min |
| EN AW-3003 | 0.60 Max | - | 0.70 Max | Remainder |
| EN AW-6061 | 0.40 – 0.80 | 0.80 – 1.20 | 0.70 Max | Remainder |
| EN AW-7075 | - | - | - | Remainder |
| Alloy | Temper | UTS (Mpa) Min | Yield Strength (Mpa) Min | Elongation (%) A 50mm (Min) |
|---|---|---|---|---|
| EN AW-1050 A | O | 60 | 20 | 23 |
| EN AW-1050 A | F | 60 | 20 | 23 |
| EN AW-1100 | O | 75 | - | 25 |
| EN AW-6061 | O | - | - | 14 |
| EN AW-6061 | T6 | 260 | 240 | 6 |
| EN AW-7075 | T6 | 520 | 480 | 5 |
