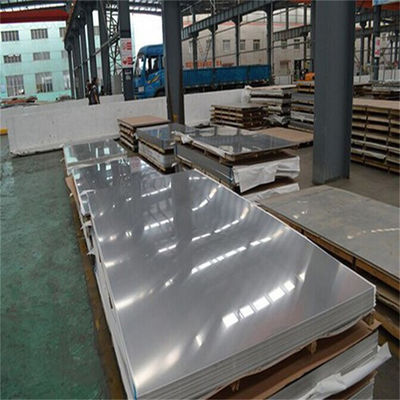

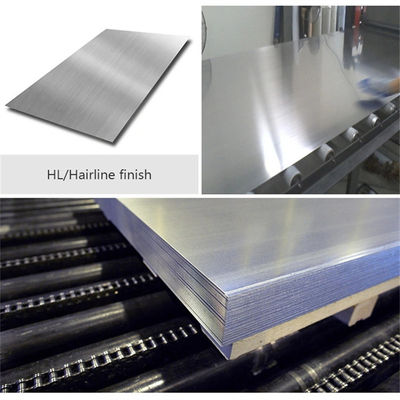

Hot Rolled Duplex 2507 Stainless Steel Plate 3-60mm Thickness for Pressure Vessels ASME SA-240 Standard
| Place of Origin | China |
|---|---|
| Brand Name | TISCO, ZPSS,BAOSTEEL,LISCO,JISCO |
| Certification | SGS,ISO,CE,BIS |
| Model Number | 200 SERIES, 300 SERIES,400 SERIES, 904l,2205,2507 etc. |
| Minimum Order Quantity | 1 TON |
| Packaging Details | Export sea worthy packing with wooden pallet and well tied and protected, Or as to clients' requirements. |
| Delivery Time | 3~10 DAYS, Most of sizes are in stock |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 2000Tons /Month |
Product Details
| Product Name | 3-60mm Hot Rolled Duplex 2507 Stainless Steel Plate For Pressure Vessel Fabrication | Technique | Cold Rolled Or Hot Rolled |
|---|---|---|---|
| Grade | 2507,2205,201,304, 304L 316, 316L ,430, 410, 420, 316Ti, 321, 301, 309,309S, 310, 310S,etc. | Standard | ASTM A240/240M ; ASME SA-240/SA-240M; JIS G4305; DIN/BS/NF EN10028-7 ; ISO;GB/T 3280-2015 |
| Edge | Mill Edge; Cut Edge | Samples | Free To Supply |
| Width*Length | 1000*2000;1219*2438;1219*3048; 1250*3000;1500*3000;1524*3048mm Or Per Customized | Surface | NO.1,2B,BA,8K,No.4,HL,SB,Embossed,Checkered, Etc.. |
| Thickness | Cold Rolled: 0.3mm~6mm; Hot Rolled: 3mm~60mm | Trade Term | FOB,CIF,EXW,CFR,DDU,DDP,DAP |
You can tick the products you need and communicate with us in the message board.
| Finish | Definition | |
|---|---|---|
| No.1 | Hot Rolled | |
| No. 2B | Cold-rolled , bright finish ; |
Product Description
3-60mm Hot Rolled Duplex 2507 Stainless Steel Plate for Pressure Vessel Fabrication
Our hot rolled duplex 2507 stainless steel plates (3-60mm) provide twice the compressive strength of austenitic steels, excellent anti-crevice corrosion, and thermal stability for pressure vessels.
Problem Statement
316L and 317L pressure vessels suffer from stress corrosion cracking (SCC) and weight penalties, especially in sour gas or high-chloride service.
Solution
Duplex 2507 offers higher strength, allowing thinner walls and lighter vessels. It resists SCC and pitting, and meets ASME SA-240 standards.
Specifications
| Parameter | Details |
|---|---|
| Grade | 2507, 2205 |
| Thickness | 3-60mm hot rolled |
| Size | 1500×3000, 2000×6000 mm custom |
| Finish | No.1, No.4, checkered |
| Standard | ASME SA-240, ASTM A240M |
Applications
- Pressure vessels
- Storage tanks
- Chemical reactors
- Offshore platform equipment
Technical Operation
The duplex microstructure (50% ferrite / 50% austenite) blocks crack propagation. High yield strength (≥550 MPa) reduces required material thickness.
Selection Guidelines
For temperatures up to 600°F and high chlorides, use 2507. For lower chlorides, 2205 is cost-effective. Verify impact test data for welded structures.
Frequently Asked Questions
Q1: Can 2507 be used for hydrogen service?
Limited; consult standards.
Q2: What welding method?
GTAW with over-alloyed filler.
Q3: Is heat treatment needed after welding?
Not usually, but avoid prolonged 750-1000°F exposure.
