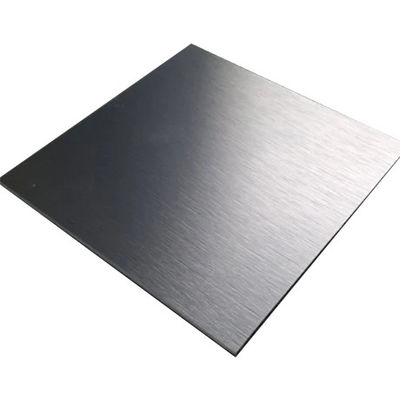

0.3mm Thin Corrosion Resistant Duplex 2205 Stainless Steel Foil for Fuel Cell Bipolar Plates
| Place of Origin | China |
|---|---|
| Brand Name | TISCO, ZPSS,BAOSTEEL,LISCO,JISCO |
| Certification | SGS,ISO,CE,BIS |
| Model Number | 200 SERIES, 300 SERIES,400 SERIES, 904l,2205,2507 etc. |
| Minimum Order Quantity | 1 TON |
| Packaging Details | Export sea worthy packing with wooden pallet and well tied and protected, Or as to clients' requirements. |
| Delivery Time | 3~10 DAYS, Most of sizes are in stock |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 2000Tons /Month |
Product Details
| Samples | Free To Supply | Standard | ASTM A240/240M ; ASME SA-240/SA-240M; JIS G4305; DIN/BS/NF EN10028-7 ; ISO;GB/T 3280-2015 |
|---|---|---|---|
| Technique | Cold Rolled Or Hot Rolled | Grade | 2507,2205,201,304, 304L 316, 316L ,430, 410, 420, 316Ti, 321, 301, 309,309S, 310, 310S,etc. |
| Width*Length | 1000*2000;1219*2438;1219*3048; 1250*3000;1500*3000;1524*3048mm Or Per Customized | Edge | Mill Edge; Cut Edge |
| Product Name | H1: 0.3mm Thin Duplex 2205 Stainless Steel Foil For Fuel Cell Bipolar Plates | Surface | NO.1,2B,BA,8K,No.4,HL,SB,Embossed,Checkered, Etc.. |
| Thickness | Cold Rolled: 0.3mm~6mm; Hot Rolled: 3mm~60mm | Trade Term | FOB,CIF,EXW,CFR,DDU,DDP,DAP |
You can tick the products you need and communicate with us in the message board.
| Finish | Definition | |
|---|---|---|
| No.1 | Hot Rolled | |
| No. 2B | Cold-rolled , bright finish ; |
Product Description
0.3mm Thin Duplex 2205 Stainless Steel Foil for Fuel Cell Bipolar Plates
Product Overview
Our ultra-thin (0.3-1mm) duplex 2205 foil offers high electrical conductivity, corrosion resistance, and mechanical strength for proton exchange membrane fuel cell (PEMFC) bipolar plates.
Challenge
Graphite and coated 316L bipolar plates suffer from either brittleness, high cost, or corrosion-induced contact resistance.
Solution
Duplex 2205 foil provides bulk corrosion resistance without coatings, low interfacial contact resistance, and high strength for thin-gauge stamping.
Specifications
| Parameter | Details |
|---|---|
| Grade | 2205, 2507 |
| Thickness | 0.3-1mm cold rolled |
| Width | 914-1219 mm |
| Finish | 2B, BA |
| Standard | ASTM A240M |
Applications
PEMFC bipolar plates, electrolyzer interconnects, and flow field plates.
How It Works
The passive film is conductive enough under compression. Duplex structure prevents hydrogen embrittlement in anode environment.
Selection Guidance
For automotive fuel cells, 0.3mm 2205 is optimal. For stationary units, 0.5mm 2507 offers longer life. Request ICR test data.
Frequently Asked Questions
Does 2205 cause catalyst poisoning?
No, low ion leaching.
Can it be laser welded?
Yes.
Operating temperature?
Up to 100°C typical, compatible with PEM.
