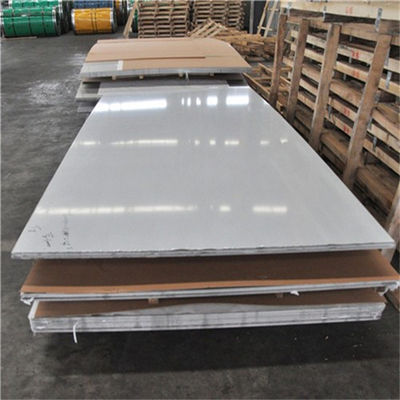

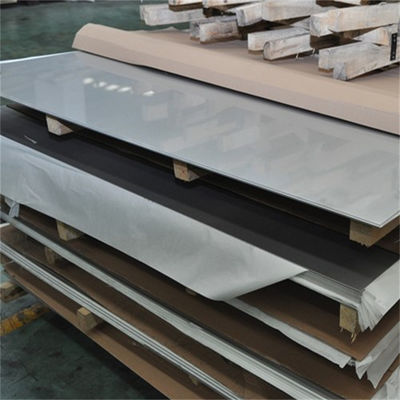

HL Hairline Finish Duplex 2205 Sheet - Corrosion Resistant High Strength Architectural Cladding
Product Details
| Product Name: | HL Hairline Finish Duplex 2205 Sheet For Architectural Cladding And Curtain Walls | Technique: | Cold Rolled Or Hot Rolled |
|---|---|---|---|
| Samples: | Free To Supply | Standard: | ASTM A240/240M ; ASME SA-240/SA-240M; JIS G4305; DIN/BS/NF EN10028-7 ; ISO;GB/T 3280-2015 |
| Grade: | 2507,2205,201,304, 304L 316, 316L ,430, 410, 420, 316Ti, 321, 301, 309,309S, 310, 310S,etc. | Edge: | Mill Edge; Cut Edge |
| Width*Length: | 1000*2000;1219*2438;1219*3048; 1250*3000;1500*3000;1524*3048mm Or Per Customized | Surface: | NO.1,2B,BA,8K,No.4,HL,SB,Embossed,Checkered, Etc.. |
| Thickness: | Cold Rolled: 0.3mm~6mm; Hot Rolled: 3mm~60mm | Trade Term: | FOB,CIF,EXW,CFR,DDU,DDP,DAP |
Product Description
Our HL (hairline) finish duplex 2205 sheets combine aesthetic appeal, high strength, and outstanding atmospheric corrosion resistance for coastal building cladding.
304 or 316 curtain walls in marine environments show tea-staining and pitting within 2-5 years, requiring costly maintenance.
Duplex 2205 provides 10× the pitting resistance of 304, a uniform hairline finish hiding fingerprints, and higher strength allowing thinner panels.
| Parameter | Details |
|---|---|
| Grade | 2205 |
| Thickness | 1-4mm cold rolled |
| Finish | HL, No.4, No.1 |
| Size | 1219×3048, 1500×3000 mm |
| Standard | ASTM A240M |
- Coastal building façades
- Curtain walls
- Elevator interiors
- Bridge railings
The directional HL brush pattern (grain 120-180) diffuses light and hides micro-scratches. Duplex structure resists airborne chlorides.
For direct sea spray, use 2205 HL. For inland high humidity, 2205 is optional. Ensure matching anodized aluminum contact is avoided.
Yes, with brush refinishing.
Slightly, but longer life.
Virtually no red rust.
Product Highlights
