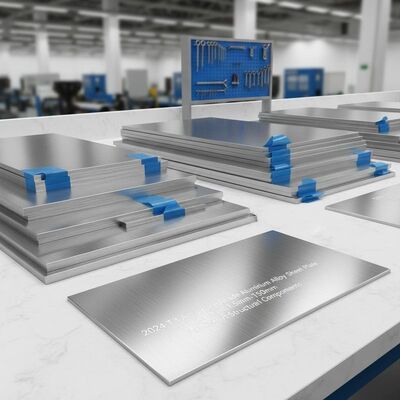

2024 T3 Aerospace Grade Aluminum Alloy Sheet Plate 1.5mm-150mm Thickness for Aircraft Structural Components
Product Details
| Alloy: | 2024 | Temper: | T3, T351, T4 |
|---|---|---|---|
| Thickness: | 1.5mm - 150mm | Width: | 1000mm, 1250mm, 1500mm, 2000mm, 2500mm |
| Length: | 2000mm, 2440mm, 3000mm, 6000mm Or Customized | Standard: | ASTM B209, AMS 4035, AMS 4037, EN 573 |
| Surface Finish: | Mill Finish, Anodized, Coated, Polished | Tensile Strength: | ≥ 485 MPa |
| Yield Strength: | ≥ 345 MPa | Elongation: | ≥ 12% |
| Application: | Aircraft Structures, Fuselage, Wing Spars, Equipment | ||
| Highlight |
2024 T3 Aerospace Aluminum Sheet,Aircraft Grade Alloy Plate 2024,High Strength Aviation Aluminum Plate |
||
Product Description
The 2024 T3 aluminum alloy sheet is a high-strength, heat-treatable alloy renowned for its excellent strength-to-weight ratio and superior fatigue resistance. Widely used in aerospace and aviation industries, this alloy delivers reliable performance in demanding structural applications.
- High Strength: Tensile strength ≥ 485 MPa in T3 temper, rivaling mild steel strength with 1/3 the weight
- Excellent Fatigue Resistance: Engineered to withstand repeated stress cycles in aircraft applications
- Good Machinability: Superior cutting and forming characteristics for complex component manufacturing
- Heat Treatable: Solution heat-treated and cold-worked for enhanced mechanical properties
- Natural Aging: Stable mechanical properties achieved through natural aging process
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| Min | - | - | 3.8 | 0.3 | 1.2 | - | - | - | Remainder |
| Max | 0.50 | 0.50 | 4.9 | 0.9 | 1.8 | 0.10 | 0.25 | 0.15 |
| Property | Value |
|---|---|
| Tensile Strength | ≥ 485 MPa |
| Yield Strength | ≥ 345 MPa |
| Elongation | ≥ 12% |
| Hardness (Brinell) | 120 HB |
| Density | 2.78 g/cm³ |
| Parameter | Range |
|---|---|
| Thickness | 1.5mm - 150mm |
| Width | 1000mm - 2500mm |
| Length | 2000mm - 6000mm or Custom |
| Temper | T3, T351, T4, T42 |
- Aircraft fuselage skins and structural panels
- Wing spars, ribs and stringers
- Vehicle armor plates
- High-performance truck wheels
- Precision machined components and fittings
- Strict Quality Control: Every batch undergoes spectrographic analysis, tensile testing and ultrasonic inspection
- Complete Traceability: Mill test certificates (MTC EN 10204 3.1) provided with every shipment
- Flexible MOQ: Small trial orders accepted from 500 kg
- Professional Packaging: Export-grade wooden pallets with anti-corrosion paper and PE film wrapping
- Fast Delivery: Extensive stock inventory for prompt shipment; custom production within 15-25 days
Product Highlights
Premium 2024 T3 aerospace grade aluminum alloy sheet plate with high strength-to-weight ratio, excellent fatigue resistance and machinability. Ideal for aircraft structural components, fuselage skins, wing spars and military applications. Available in thickness range 1.5mm to 150mm with mill finish, anodized or coated surface options. Custom dimensions supported.
